Produktbeskrivning

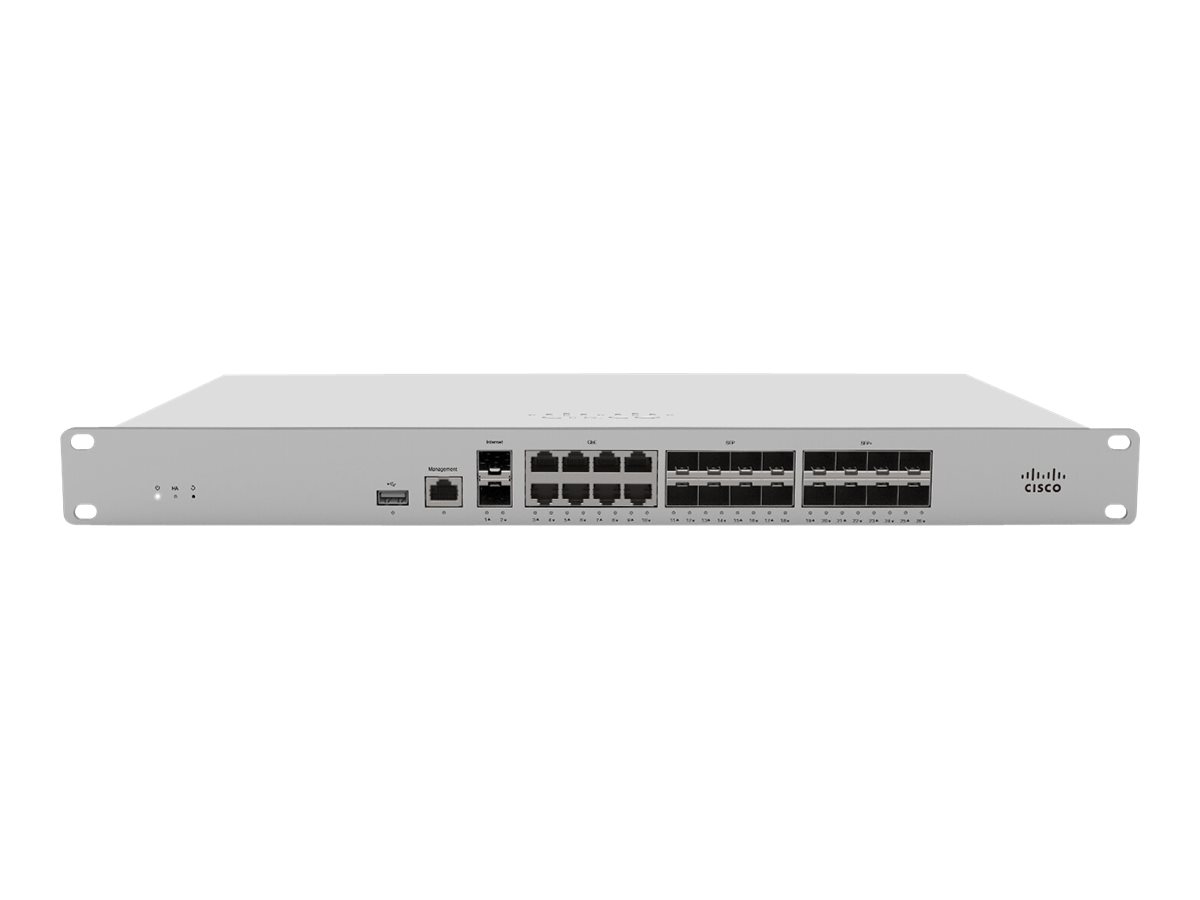

The Meraki MX250 is a cloud-managed network security appliance designed for large brand and campus networks. It is able to provide high-bandwidth, secure, and easy to manage connectivity. Packed with layer 7 application firewalling and performance features like traffic shaping, VPN, SD-WAN capabilities, IPS and advanced malware protection, the MX250 is ideal for reducing overall IT cost while enhancing network reliability. With two 10G SFP+ dedicated uplink ports, and a variety of 1G and 10G LAN ports, MX250 is an ideal UTM solution for large branches, offices and campus environments.



Egenskaper

Feature-rich unified threat management capabilities
Flow-based protection engine. Identity-based security policies and application management.

Intelligent site-to-site VPN
Automatic VPN route generation using IKE/IPsec setup. VPN path selection and support for application-layer performance profiles to ensure prioritization of the applications types that matter.



Teknisk specifikation

Typ av enhet	Säkerhetsfunktion

Formfaktor	Kan monteras i rack
Anslutningsteknik	Kabelansluten
Datalänkprotokoll	Gigabit Ethernet
Nätverks/transportprotokoll	TCP/IP, IPSec, DHCP
Protokoll för administration på distans	HTTP
Prestanda	Brandväggens genomströmningshastighet: 4 Gbit/s Genomströmningshastighet för VPN: 1 Gbps
Kapacitet	VPN-tunnlar (site-to-site):
Funktioner	Nätverksövervakning, DMZ-port, DHCP-stöd, NAT-stöd, VPN-stöd, VLAN-stöd, trafikbegränsning, övervakningsbar, Intrusion Detection System (IDS), intrångsförebyggande system (IPS), fast programvara kan uppdateras, WAN-failover-funktion, stöd för 3G/4G USB-dongel, programnivåinspektion, Link Aggregation, Web Filtering
Verifieringsmetod	Active Directory

Gränssnitt	2 x 10Gb Ethernet - SFP+ (WAN) 8 x 1000Base-T - RJ-45 8 x - SFP (mini-GBIC) 8 x 10Gb Ethernet - SFP+ 1 x USB - Type A

Nätdel	Intern strömförsörjning
Installerat antal	2
Max antal som stöds	2
Redundant ström	Ja
Nätspänning	AC 120/230 V (50/60 Hz)
Effekt	250 Watt

Service och support	Begränsad garanti - livstid - svarstid: nästa dag

Min temperatur vid drift	0 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	5 - 95 % (icke-kondenserande)
