Produktbeskrivning

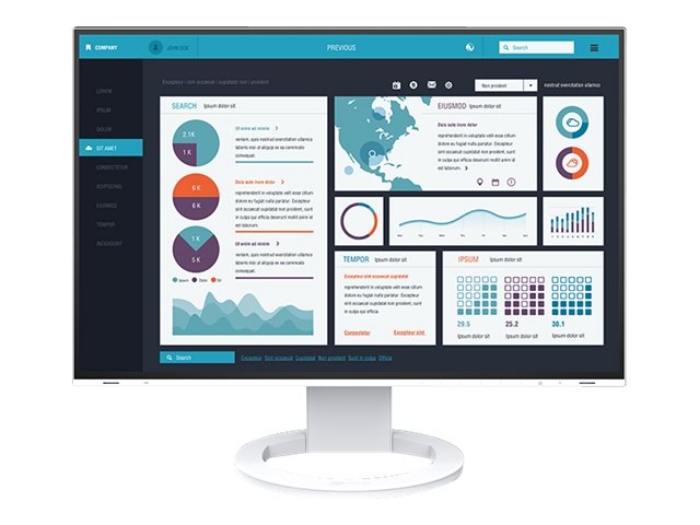

The EIZO FlexScan is a USB Type-C docking monitor with daisy chain capability for streamlining hot desking and remote working.



Egenskaper

Streamlined connection with USB Type-C
The monitor is equipped with a USB Type-C connection that allows you display video, playback audio, transmit USB signals, supply power to connected devices, and even transmit a network signal. This convenient multi-purpose connectivity makes it faster and easier to connect your laptop when moving between workstations or working away from the office.

Efficient multi-screen setup
The monitor's USB Type-C connection supports daisy chaining for easily connecting multiple monitors from a single video signal output. This allows you to effortlessly connect up to four screens and quickly view multiple applications simultaneously for boosting efficiency.

Stable network connection
While many modern laptops are not equipped with a dedicated LAN port, the monitor has one directly built in for a stable wired connection. Connecting any laptop via USB Type-C allows access to the network through the monitor. This allows you to conduct conference calls or data transfers reliably and at high speed.

Stylish design
A monitor's aesthetic can go a long way in creating a more comfortable atmosphere. The monitor's minimalistic design and its ergonomic functions allow it to fit naturally in your work environment, whether you are at home or in the office.

Versatile stand for optimal positioning
The stand has a wide adjustment range, featuring height adjustment, tilt and swivel. This allows the user to set the monitor to the perfect position. At maximum height, the user can also comfortably place a small laptop under the screen to save space in even limited workspaces.

Say goodbye to tired eyes
The monitor is equipped with functions to help users concentrate on work by keeping their eyes comfortable throughout the day.

Front-facing speakers
The monitor has speakers incorporated into the minimalist front bezel, ensuring that sound is focused on the user and not on people behind the monitor.



Teknisk specifikation

Typ av bildskärm	LED-bakgrundsbelyst LCD-skärm / TFT aktiv matris
Energiklass	Klass C
Energikonsumtion per år	17 kWh
Diagonal storlek	24.1"
Inbyggda enheter	USB 3.1 Gen 1 hub
Paneltyp	IPS
Bildförhållande	16:10
Ursprunglig upplösning	1920 x 1200
Pixelhöjd	0.27 mm
Pixlar per tum	94
Ljusstyrka	350 cd/m²
Kontrastförhållande	1000:1
Responstid	5 ms (grå-till-grå)
Vertikal uppdateringshastighet	59 - 61 Hz
Horisontell uppdateringshastighet	15 - 76 kHz
Horisontell visningsvinkel	178
Vertikal visningsvinkel	178
Bakgrundsbelysningsteknik	LED-bakgrundsbelysning
OSD-språk	Kinesiska (traditionell), kinesiska (förenklad), engelska, tyska, franska, italienska, svenska, spanska, japanska
Egenskaper	sRGB färghantering, Auto EcoView, The Paper Mode, flimmerfri teknik, Movie Mode, Power Saving Mode
Färg	Vit
Dimensioner (BxDxH)	53.1 cm x 35.62 cm x 23 cm - med ställ
Vikt	7.6 kg

Typ	Högtalare - stereo
Uteffekt / kanal	1 Watt

Gränssnitt	HDMI (HDCP 1.4) DisplayPort (HDCP 1.3) USB-C (HDCP 1.3) USB 3.1 Gen 1 uppströms (Typ B) Hörlurar (minijack) USB-C 3.1 gen 1 uppströms/DisplayPort Alt-läge med strömleverans 3 x USB 3.1 Gen 1 nedströms (Typ A) USB-C 3.1 nedströms med strömleverans

Displaylägesjusteringar	Höjd, pivot (rotation), vridbar bas, lutning
Lutningsvinkel	-5/+35
Vridningsvinkel	344
Rotationsvinkel	180
Höjdjustering	176.6 mm
VESA-infästningsgränssnitt	100 x 100 mm

Egenskaper	VESA-gränssnittsstöd
Medföljande kablar	1 x USB to LAN Adapter 1 x USB-C-kabel - 2 m
Monteringssats	Inkluderat
Standarder som följs	FCC Klass B-certifierade, TUV, TUV GS, TUV S, CB, CCC, TUV Ergo, RoHS, WEEE, PSE Mark, cTUVus, China Energy Label Level 2, EPA, VCCI Class B, EAC, China RoHS, RCM, CAN ICES-3 Class B, TUV LBL

Inspänning	AC 120/230 V (50/60 Hz)
Strömkonsumtion (driftläge)	12 W
Strömförbrukning för SDR (På-läge)	12 kWh/1 000 h
Strömförbrukning (typisk)	11 Watt
Strömkonsumtionsställ med	0.5 Watt
På/av-omkopplare	Ja

Inkluderad programvara	EIZO Screen InStyle

Mått och vikt (komponenter)	Med ställ - bredd: 53.1 cm - djup: 35.62 cm - höjd: 23 cm - vikt: 7.6 kg Utan ställ - bredd: 53.1 cm - djup: 5.37 cm - höjd: 34.42 cm - vikt: 4.9 kg

ENERGY STAR-certifierad	Ja

Service och support	Begränsad garanti - 5 år

Min temperatur vid drift	5 °C
Max temperatur vid drift	35 °C
Luftfuktighet vid drift	20 - 80 % (icke-kondenserande)
