Produktbeskrivning

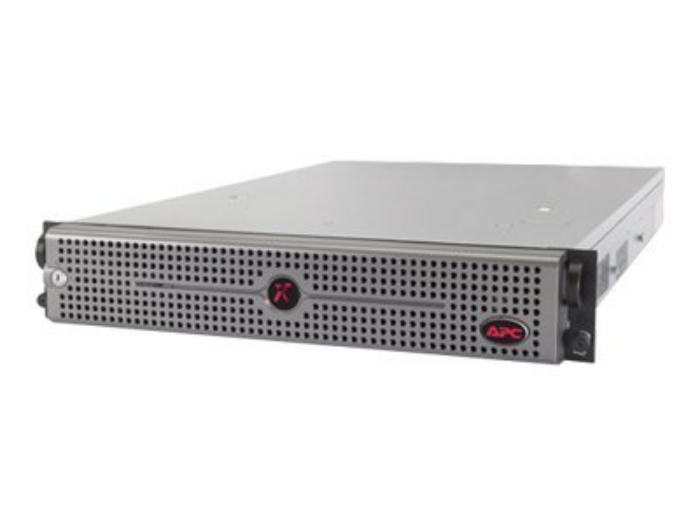

InfraStruXure Central provides an efficient, productive way for organizations to manage their company-wide NetBotz appliances. The centralized server allows the user to mass configure thresholds and firmware updates, and to deploy, view and graph data collected by NetBotz monitoring appliances. InfraStruXure Central's security and environmental monitoring solution can scale across large and diverse organizations.



Egenskaper

Encrypted communications
128-bit, SSL encrypted communications between client and server, as well as encrypted user IDs and passwords stored on the server to help protect your resources.

Custom mapping
Custom backgrounds, unique user-assignable icons, and drag-and-drop device placement make it easy to identify problem devices at a glance, minimizing downtime, errors, and cost.

Integrated data storage
InfraStruXure Central ships with internal storage for data and video collection. Additional storage can easily be made available using the built-in Network Attached Storage server support for long-term storage and archiving.

Centralized management
Simplify management of the physical infrastructure using a centralized repository accessible from anywhere on the network through a powerful and easy-to-use console application.

Custom reporting
Create, save and schedule user-defined reports for ease of data collection, distribution and analysis.

Alarm filters
Customize the user interface to display devices in critical, warning or normal device statuses.

Mass firmware update
Decrease set-up time and complexity of managed devices by simultaneously upgrading firmware for multiple APC devices.

Unified console
Customizable Windows and Linux client application enables instant access to InfraStruXure Central application from anywhere on the network.

Private networking
Reduce IP addresses needed on the public network to manage devices, by placing them on an isolated secure network.

Surveillance add-on application
Enhance visibility of your critical assets with physical threat management to monitor and record all activity in secured areas. A centralized repository allows the user to review, search and tag surveillance events for future needs.

Centralized alert repository
Access historical alerts from several appliances through one central database. Sort alerts by type, date, appliance, and/or device group.

Remote monitoring support
Web-based service serves as a second set of eyes into the health of a company's physical infrastructure. Experienced professionals work non-stop to provide 24-hour monitoring and to help diagnose problems before they become critical.

Multi-vendor device support
Extensive multi-vendor support for monitoring networked SNMP devices. Enable visibility of existing SNMP devices through threshold alert notifications, data trending and reporting.

Customizable user access
Define user access and viewing capabilities to individual groups. Control access to devices by administrator-defined user accounts. Additional user access can be managed by using the built-in LDAP and Active Directory support.

Fault notification
Real-time event notification minimizes response times to critical physical infrastructure situations. Enables IT administrators to reduce mean time to repair, improve efficiency, and maximize uptime.

Auto-discovery
Reduces the time needed to install and deploy physical infrastructure devices by automatically detecting manageable devices on your network.

Graphical trending analysis
Access current and historic data for any device or group of devices. Plot and graph multiple data points in a logical correlation to visualize potential hazardous trends.

Real-time monitoring
Immediate visibility to your entire physical infrastructure through centralized, real-time device monitoring and notification enabling quick assessment of events as they occur.



Teknisk specifikation

Typ av enhet	Enhet för nätverksadministration
Bredd	71.1 cm
Djup	48.3 cm
Höjd	8.9 cm
Vikt	25 kg
Färg	Silver

RAM	4 GB
Hårddisk	HDD 300 GB x 5
RAID-nivå	RAID 5

Formfaktor	Kan monteras i rack
Datalänkprotokoll	Ethernet, Fast Ethernet
Nätverks/transportprotokoll	TCP/IP
Protokoll för administration på distans	SNMP, HTTP, HTTPS
Krypteringsalgoritm	SSL

Gränssnitt	2 x 100Base-TX - RJ-45 1 x PS/2-tangentbord 1 x PS/2-mus 1 x VGA 2 x USB - Type A 1 x RS-232 - DB-9

Nätdel	Intern strömförsörjning

Medföljande programvara	Drivrutiner och hjälpprogram

Service och support	Begränsad garanti - 2 år

Min temperatur vid drift	10 °C
Max temperatur vid drift	35 °C
Luftfuktighet vid drift	5 - 90%

Designat för
