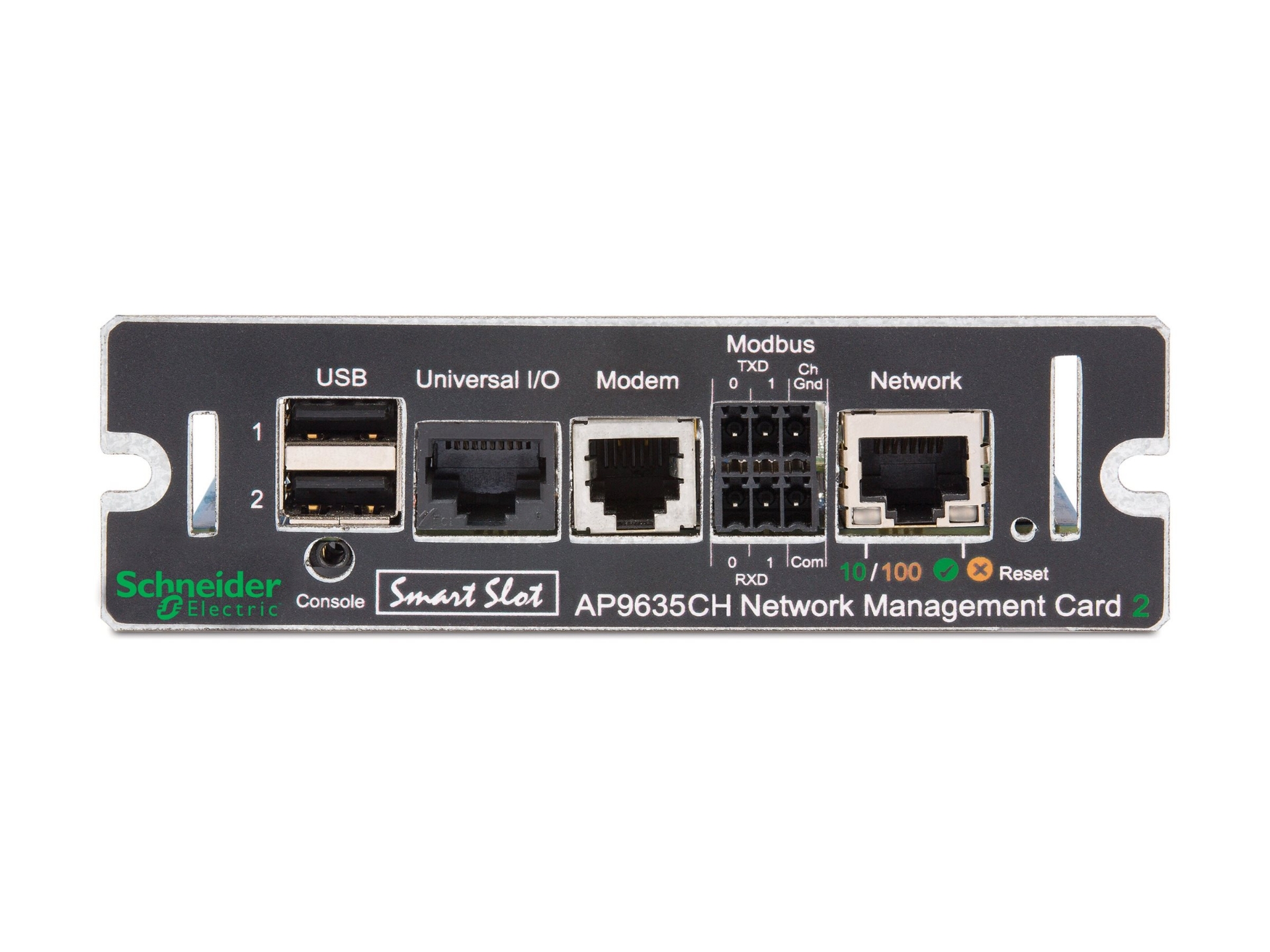

Produktbeskrivning

APC UPS network management cards allow for secure monitoring and control of an individual APC UPS via web browser, command line interface, or SNMP. Embedded technology provides exceptional reliability with notification features that inform you of problems as they occur.



Egenskaper

Command line interface
Offer simultaneous remote management access through Telnet and SSH.

Multiple user access
Support simultaneous web browser access for up to 8 users and network command line interface access for up to 3 users.

Notification
Be notified of problems to ensure crucial situations are dealt with in a timely manner.

Scheduling
Customize shut down and reboot of connected equipment and UPSs.

Data logging
Identify problematic trends before they escalate or export the data log for analysis.

Event logging
Pinpoint the timing and sequence of events leading up to an incident with the event log.

Integrates with StruxureWare data center expert
An IT-ready, scalable access monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network.

Enterprise management system compatible
Make device information available to your preferred enterprise management system by forwarding SNMP traps (events) across SNMPv1, SNMPv2 and SNMPv3 using the PowerNet MIB.

Browser accessible
View the user interface with a browser. Provides quick access from anywhere on a secure network.

Protection
Password security user-selectable password protection prevents unauthorized access, authorized against LDAP and Active Directory servers.

Three-tier user access
Control user access on three levels including read only, device and administrator.

Radius support
Use an existing radius server to securely authenticate, authorize, and account for your APC device



Teknisk specifikation

Typ av enhet	Adapter för administration på distans
Formfaktor	Insticksmodul
Gränssnittstyp (buss)	SmartSlot

Portar	10/100 Ethernet
Anslutningsteknik	Kabelansluten
Typ av kablage	Ethernet 10Base-T, Ethernet 100Base-TX
Datalänkprotokoll	Ethernet, Fast Ethernet
Dataöverföringshastighet	100 Mbps
Nätverks/transportprotokoll	TCP/IP, NTP, SMTP
Protokoll för administration på distans	SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH, SSH-2
Funktioner	2 048-bitars kryptering, E-postavisering, stöd för IPv6, fast programvara kan uppdateras, RADIUS-stöd, IPv4-support

Gränssnitt	1 x 100Base-TX - RJ-45
Kompatibla kortplatser	1 x SmartSlot

Krypteringsalgoritm	SSL
Standarder som följs	GOST, ICES-003, VCCI klass A ITE, EN55024, EN55022 klass A, AS/NZ 3548 Class A, RoHS, FCC Part 15 A, C-Tick Class A, REACH
Färg	Svart

Medföljande programvara	Drivrutiner och hjälpprogram

Bredd	12.1 cm
Djup	11.4 cm
Höjd	3.8 cm
Vikt	80 g

Service och support	Begränsad garanti - 2 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	45 °C
Luftfuktighet vid drift	0 - 95%

Designat för	MGE Galaxy 5500
