Produktbeskrivning

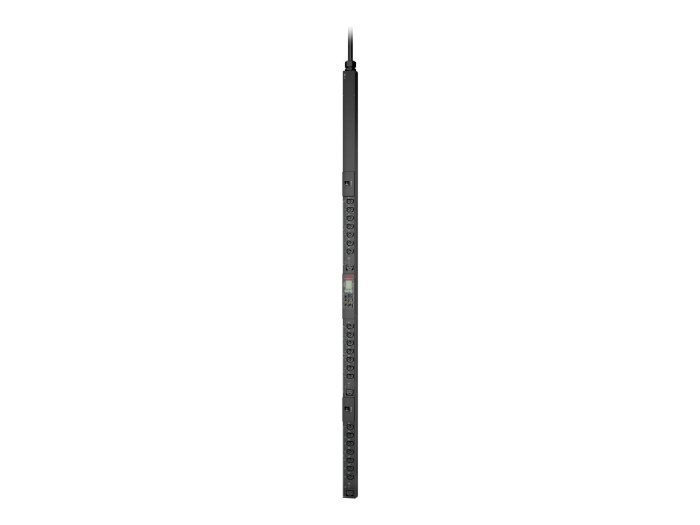

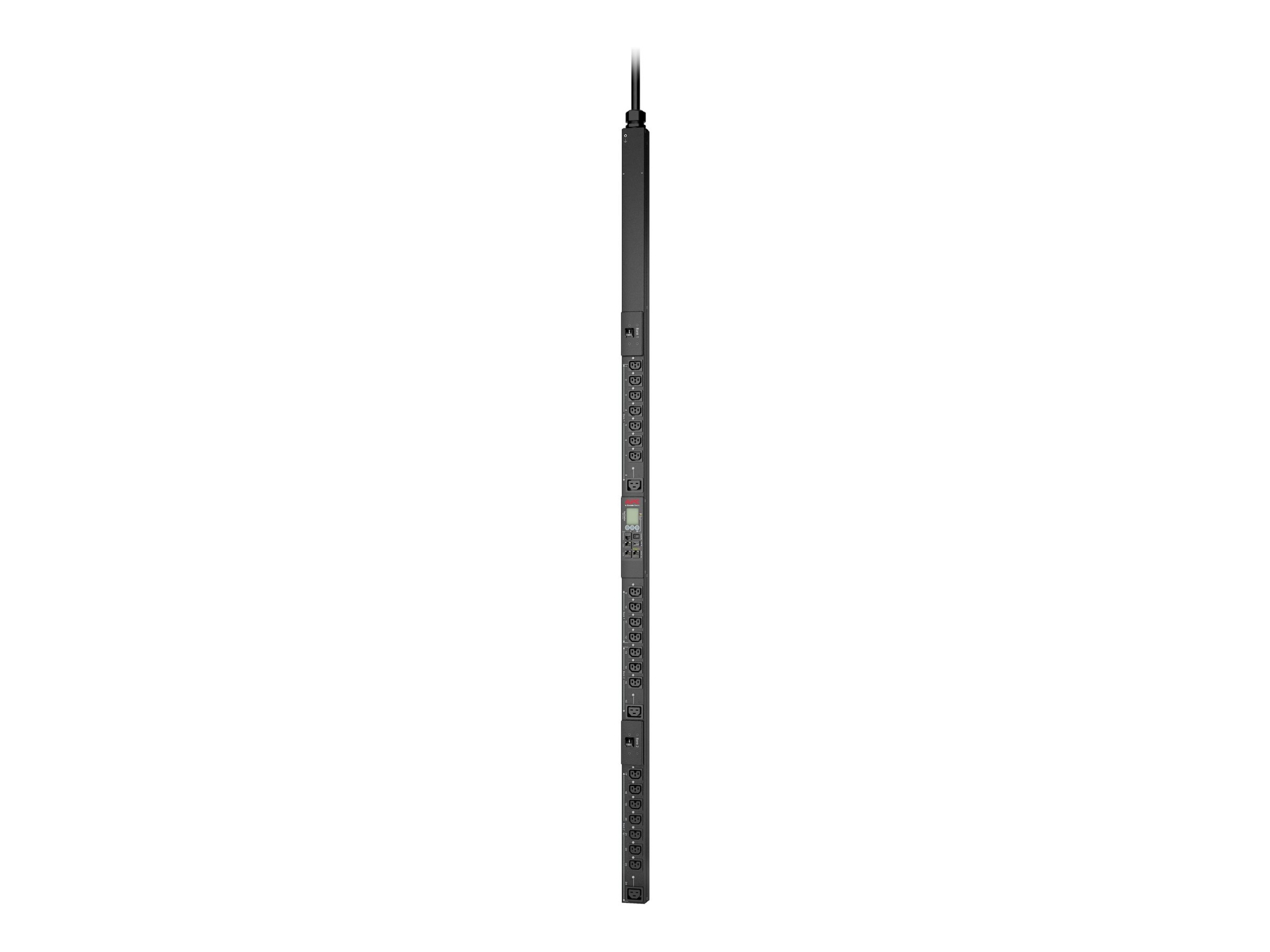

With high reliability, manageability, and security, APC Switched Rack PDUs provide advanced load management plus on/off outlet level power cycling and sequencing control.



Egenskaper

Gigabit Ethernet connectivity
9000 series PDUs provide Gigabit Ethernet to enhance and standardize network connectivity across all assets in the data center.

Flash-upgradeable
Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when different features are released.

Hydraulic magnetic circuit breakers
Hydraulic magnetic circuit breakers provide increased availability by maintaining trip current over a wide temperature range.

C13/C15 and C19/C21 hybrid outlets
Hybrid outlets allow for 60°C operating temperature at full load, are fully compatible with standard C14 and C20 power cords, and are futureproof for implementation of higher temperature rated devices requiring C16 and C21 power cords.

Outlet level grouping
Outlet power sequencing can be configured to group any combination of outlets to power up or down together providing flexibility.

Multi-tier user access
Supports up to four access levels - Administrator, Device User, Read-Only User and Network-only User - with user name and password requirements.

Network management capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage rack PDUs from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.

Enhanced cybersecurity
9000 series PDUs include APC network management card with security features including secured interfaces and a modified password policy providing peace of mind.

Alarm thresholds
Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems.



Teknisk specifikation

Typ av enhet	Kraftdistributionsenhet - kan monteras i rack
Höjd (U-format)	0U
Sladdlängd	3.05 m
Färg	Svart

Inspänning	AC 200/208 V
Tillhandahållen frekvens	50/60 Hz
Erforderlig frekvens	50/60 Hz
Inmatningsanslutningar	1 x power NEMA L6-30P
Kontaktdetaljer för uteffekt	21 x effekt IEC 60320 C13/C15 3 x effekt IEC 60320 C19/C21
Utspänning	AC 200/208 V 50/60 Hz
Max elektrisk ström	30 A
Effektkapacitet	4992 VA

Gränssnitt för fjärradministration	Ethernet 10/100/1000

Gränssnitt	1 x hantering (Gigabit Ethernet) - RJ-45

Medföljande kablar	Strömkabel 3.05 m
Egenskaper	Med omkopplare
Standarder som följs	cUL, ICES-003, FCC Part 15 A, PSE Mark

Service och support	Begränsad garanti - ersättningsprodukt eller reparation - 3 år

Min temperatur vid drift	-5 °C
Max temperatur vid drift	60 °C
Luftfuktighet vid drift	5 - 95%

Bredd	5.5 cm
Djup	4.6 cm
Höjd	182.9 cm
Vikt	8.5 kg

Emballagets bredd	16.5 cm
Emballagets djup	12.4 cm
Emballagets höjd	204 cm
Emballagets vikt	10 kg

Designat för

P/N: SMC1000, SMC1500, SMT1500RM2U, SMT2200RM2UC, SMT3000RM2U, SMX1000C, SMX1500RM2UC, SMX1500RM2UCNC, SMX2200R2HVNC, SMX2200RMLV2U, SMX3000HV, SMX3000HVTUS, SMX750C, SMX750CNC, SRT1000RMXLA-NC, SRT10KRMXLT, SRT10KRMXLT30, SRT10KRMXLT-5KTF2, SRT10KXLT, SRT10KXLT-5KTF2, SRT10KXLTUS, SRT3000RMXLT, SRT3000RMXLT-5KTF, SRT3000RMXLT-NC, SRT3000XLT, SRT3000XLT-5KTF, SRT5KRMXLT, SRT5KRMXLT-5KTF, SRT5KRMXLT-IEC, SRT5KXLT, SRT5KXLT-5KTF, SRT5KXLTUS, SRT6KRMXLT-5KTF, SRT6KXLT-5KTF, SRT6KXLTUS, SRT8KRMXLT-5KTF, SRT8KRMXLT-IEC, SRT8KXLT, SRT8KXLT30, SRT8KXLT-5KTF, SRT8KXLTUS, SURT20KRMXLT, SURT20KRMXLT-TF5, SYA16K16RMP, SYA4K8RMP, SYH4K6RMT, SYH4K6RMT-P1, SYH6K6RMT
