Produktbeskrivning

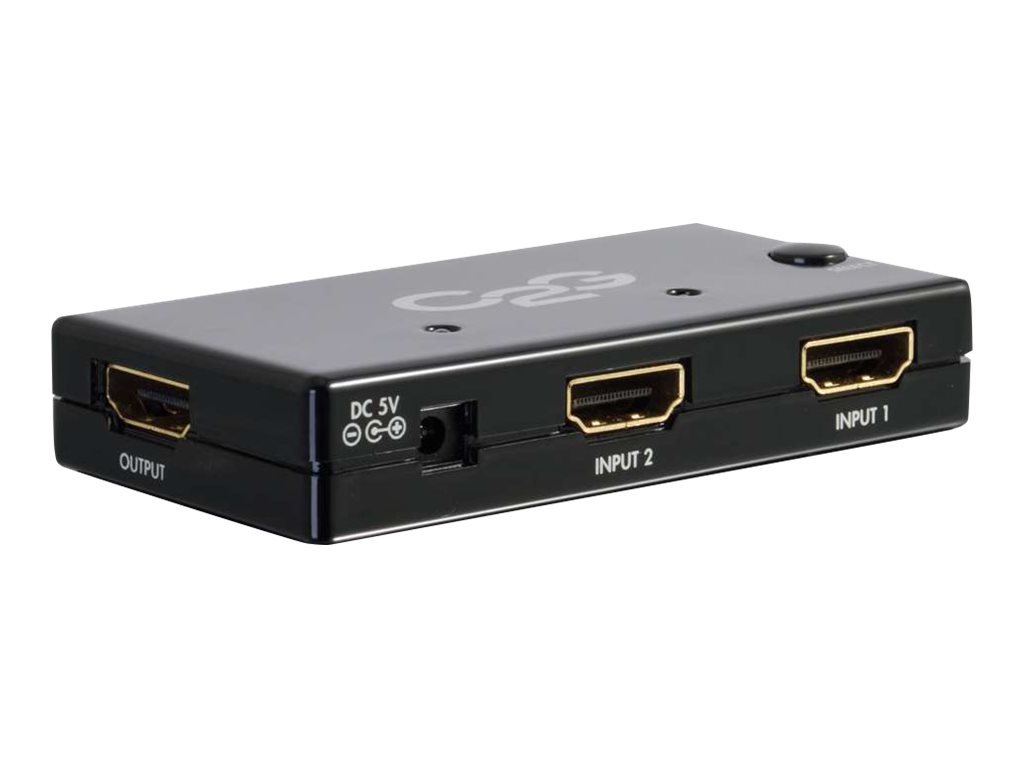

This 2-port HDMI switch allows you to conveniently switch between two HDMI source devices on a single HDMI-enabled display supporting high definition video up to a 1080p resolution. In situations where a display does not have enough HDMI inputs to accommodate multiple source devices, this switch provides additional high-definition digital inputs and is compatible with HDMI-equipped devices such as Blu-ray and DVD players, high-definition satellite boxes and gaming consoles, including Sony PlayStation 4 (PS4) and Xbox ONE. The auto-switching functionality detects when a new device is connected or powered on and will automatically switch to that port. When the device in use is disconnected or powered off, it will switch to the device that was connected first. Alternatively, manual-switching functionality is available for situations where more control is desired – simply use the select button on top of the switch to switch back and forth between the two inputs. The power required for operation of this switch is provided from the HDMI source devices, so no separate power adapter is required.



Egenskaper

● Conveniently switches between two HDMI devices and supports a 1080p resolution.
● Conveniently switches between two HDMI devices
● 1 Year Warranty
● Supports up to a 1080p resolution
● Please note: Most HDMI source devices are able to provide the necessary power for the operation of the HDMI switch; however, in some situations the power supply of the HDMI source device is insufficient and additional power is required.
● High performance - 2.5Gbps bandwidth
● Inputs - HDMI Female x 2
● Supports Deep Colour
● Outputs - HDMI Female x 1
● Autosensing function



Teknisk specifikation

Typ av enhet	Video-/ljudomkopplare - 2 portar
Modell	Skrivbordsmodell
Undertyp	HDMI
Portar	2 x HDMI
Max upplösning	1920 x 1080 / 1080p @ 60 Hz

Gränssnitt	2 x HDMI-ingång 1 x HDMI-utgång

Färg	Svart

Bredd	8.6 cm
Djup	4.4 cm
Höjd	1.6 cm

Service och support	Begränsad garanti - 1 år

Min temperatur vid drift	5 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	10 - 90 % (icke-kondenserade)
Min temperatur vid förvaring	-20 °C
Max temperatur vid förvaring	64 °C
Luftfuktighet vid lagring	10 - 90 % (icke-kondenserade)
