Produktbeskrivning
This precision-engineered cable is fully compliant with the DVI standard defined by DDWG (Digital Display Working Group). The DVI-I single link configuration provides enough bandwidth for resolutions up to 2048 x 1536 pixels and allows high speed transmission up to 9.9 Gbps. Three analogue 30 AWG coaxial lines enable high speed analogue transmission.
Egenskaper

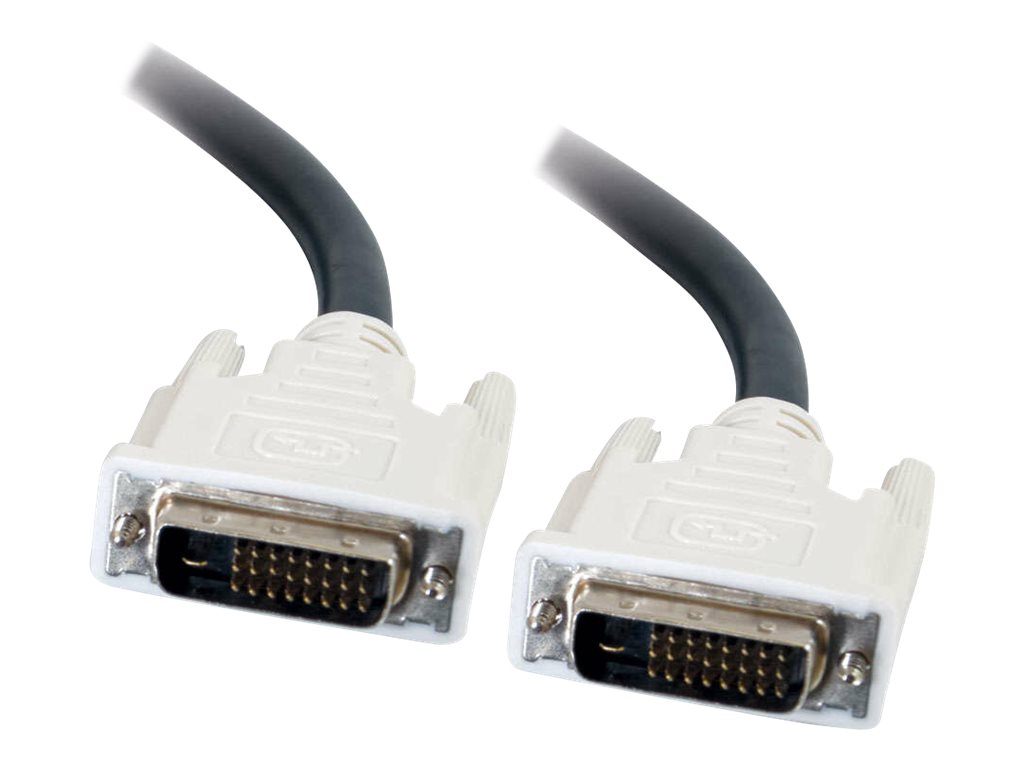

● Connectors: DVI-D dual-link 24-pin male to DVI-D dual link 24-pin male
● Dual link digital signaling allows for high speed transmission up to 9.9Gbps
● 28AWG copper conductors are individually insulated in foam-polypropylene to minimize crosstalk, ensuring high-speed, error-free transmission
● Tri-shielded with dual Mylar foil and braid shield reduces interference
● Gold plated contacts provide full conductivity with no data loss
● Supports hot plugging of DVI display devices
● Compatible with flat panel displays, digital CRT displays, projectors and HDTV
● Meets DVI DDWG standard
● Shielded under mold protects against unwanted EMI/RFI interference
Teknisk specifikation
Allmänt
| Typ | DVI-kabel |
|---|
| Teknik | Trippelskärmad |
|---|
| Avskärmningsmaterial | Folie med skärmning |
|---|
| American Wire Gauge (AWG) | 28 |
|---|
| TMDS-länkar | Dubbel länk |
|---|
| Pläterad kontakt | Guld |
|---|
| Egenskaper | Färgkodade kontakter |
|---|
| Längd | 3 m |
|---|
Anslutning
| Kontaktdon | 24+1 pin digital DVI - hane |
|---|
| Kontakt (andra änden) | 24+1 pin digital DVI - hane |
|---|
Diverse
| Standarder som följs | PC 99, RoHS |
|---|
