Produktbeskrivning

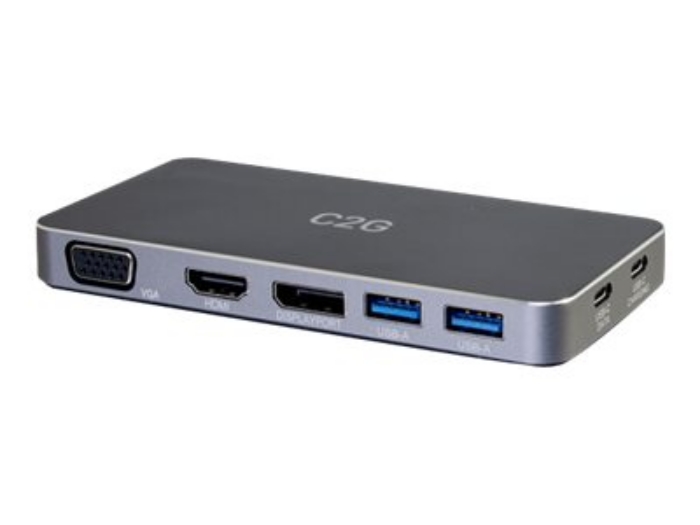

The USB-C Dual Display MST Docking Station with HDMI, DisplayPort, VGA and Power Delivery connects to USB-C or Thunderbolt[TM] 3 enabled laptops and is the perfect hybrid dock for an office desktop solution or when traveling for business ― making it ideal for inside and outside reps that need the essential connectivity while in the office or on the go.

This USB-C Dual Display MST docking station supports connected devices, such as keyboards, mice, portable hard drives, and other peripherals, all while supporting up to 65W of power delivery to charge and power a laptop. The maximum power capacity depends on how much power the connected adapter can supply. The right amount of power is necessary to keep the laptop battery charged, for all connected devices to function, and for the dock to provide that connectivity. This docking station includes a 60W USB-C power supply.

The MST feature allows for three different display configurations on multiple monitors connected to a single source with a USB-C output. MST is great for multiple display desk setup - improving multitasking and productivity. The MST dual display feature supports resolutions up to 1920 x 1080 at 60Hz. The docking station will support 4K (3840 x 2160) at 30Hz resolution when using the DisplayPort or HDMI port independently. The USB-A ports support SuperSpeed USB 5Gbps data transfers ― allowing a full HD movie to be downloaded in under a minute. The USB-C port supports SuperSpeed USB 10Gbps ― allowing for twice the amount of data in the same amount of time as the USB-A ports. Optimize performance by connecting displays designed for 1080p or 4K signals and USB-C devices designed for 10Gbps transfer speeds.



Egenskaper

Connector 1
(2) USB-C Male

Connector 2
(1) VGA Female, (1) HDMI Female, (1) DisplayPort Female, (2) USB 3.0 A Female, (3) USB-C Female

Colour
Black

Warranty
1 Year



Teknisk specifikation

Typ av produkt	Dockningsstation
Bredd	12.7 cm
Djup	6.32 cm
Höjd	1.4 cm
Vikt	130 g
Färg	Svart
Frånsägelse av ansvar gällande bildfärg	Den produkt som visas har eventuellt en annan färg

Max Upplösningsinformation	3840 x 2160 - 30 Hz (Endast HDMI) 3840 x 2160 - 30 Hz (endast DisplayPort) 1920 x 1080 - 60 Hz (endast VGA)

Gränssnitt	2 x SuperSpeed USB 3.0 - 9-stifts USB typ A 1 x USB-C med strömleverans - 24 pin USB-C 2 x USB-C - 24 pin USB-C 1 x audio / video - DisplayPort - 20-stifts DisplayPort 1 x audio / video - HDMI - 19-stifts HDMI typ A 1 x video - VGA - 15 pin HD D-Sub (HD-15)

Medföljande kablar	1 x USB-C-kabel - extern 1 x USB-C-kabel - extern - 1 m
Egenskaper	Stöd för dubbel bildskärm, MST (multi-stream transport), 65W strömleverans
Standarder som följs	FCC

Nätdel	Nätaggregat
Nätspänning	AC 120/230 V

Service och support	Begränsad garanti - 1 år

Min temperatur vid drift	0 °C
Max temperatur vid drift	50 °C
