Produktbeskrivning

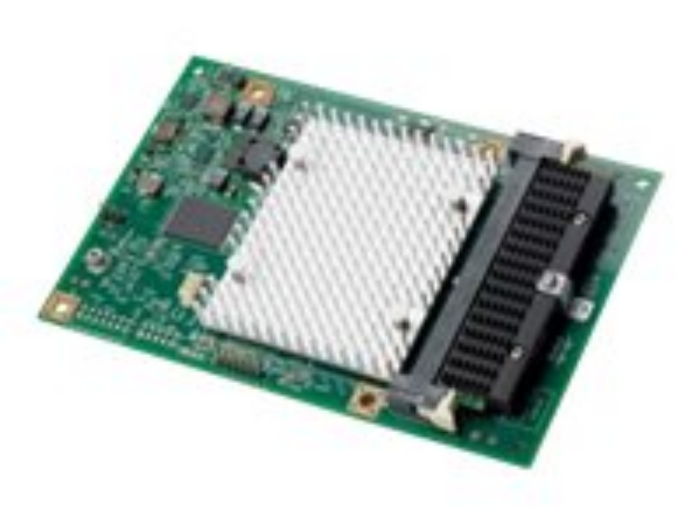

The Cisco VPN Internal Service Module (VPN ISM) is a module for the Cisco Integrated Services Routers Generation 2 (ISR G2) that provides the capability to considerably increase performance for VPN encrypted traffic. The module has a multicore processor that operates independently of the host router resources, helping ensure maximum concurrent encrypted application performance while maintaining competitive performance for other types of traffic. The Cisco VPN ISM supports the latest versions of cryptography standards, including stronger National Security Agency (NSA) regulated cryptographic algorithms such as Suite B Cryptography.

The Cisco VPN ISM is ready to use, allowing quick and easy installation of the module for increasing VPN encryption performance on Cisco ISR G2 routers. The VPN ISM is compatible with all Cisco ISR G2 routers that support the ISM card slot and runs the same level of feature-rich functions as found on the Cisco ISR G2. It integrates all elements necessary to optimize branch-office IT infrastructure for delivery of encrypted application data from the data center and deployment of branch-office applications on demand, and houses them under a single chassis - the Cisco ISR G2.



Teknisk specifikation

Typ av enhet	Krypteringsmodul
Bredd	10.2 cm
Djup	15.5 cm
Höjd	2.2 cm
Vikt	206 g

Formfaktor	Insticksmodul
Krypteringsalgoritm	DES, Tredubbel DES, RSA, MD5, AES, SHA-1, ECDSA, SHA-2, AES-GCM

Kompatibla kortplatser	1 x ISM

Standarder som följs	CISPR 22 klass A, CISPR 24, EN 61000-3-2, VCCI-I, EN 61000-3-3, EN55024, EN 61000-6-1, AS/NZS 60950-1, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, CSA C22.2 No. 60950-1-03, UL 60950-1 Second Edition, ICES Class A

Min temperatur vid drift	0 °C
Max temperatur vid drift	50 °C
Luftfuktighet vid drift	10 - 95%

Designat för

Cisco 3925, 3925 PSRE Bundle, 3925 Security Bundle, 3925 SRE Bundle, 3925 Voice Bundle, 3925 Voice Security and CUBE Bundle, 3925 Voice Security Bundle, 3925 WAAS Bundle, 3925E, 3925E Security Bundle, 3925E SRE Bundle, 3925E Voice Bundle, 3925E Voice Security and CUBE Bundle, 3925E Voice Security Bundle, 3945, 3945 ES24 Unified Computing System Express Bundle, 3945 PSRE Bundle, 3945 Security Bundle, 3945 SRE Bundle, 3945 UCSE Bundle, 3945 Voice Bundle, 3945 Voice Security and CUBE Bundle, 3945 Voice Security Bundle, 3945 VPN ISM Module HSEC Bundle, 3945 WAAS Express Bundle, 3945E, 3945E Security Bundle, 3945E SRE Bundle, 3945E Voice Bundle, 3945E Voice Security and CUBE Bundle, 3945E Voice Security Bundle
