Produktbeskrivning

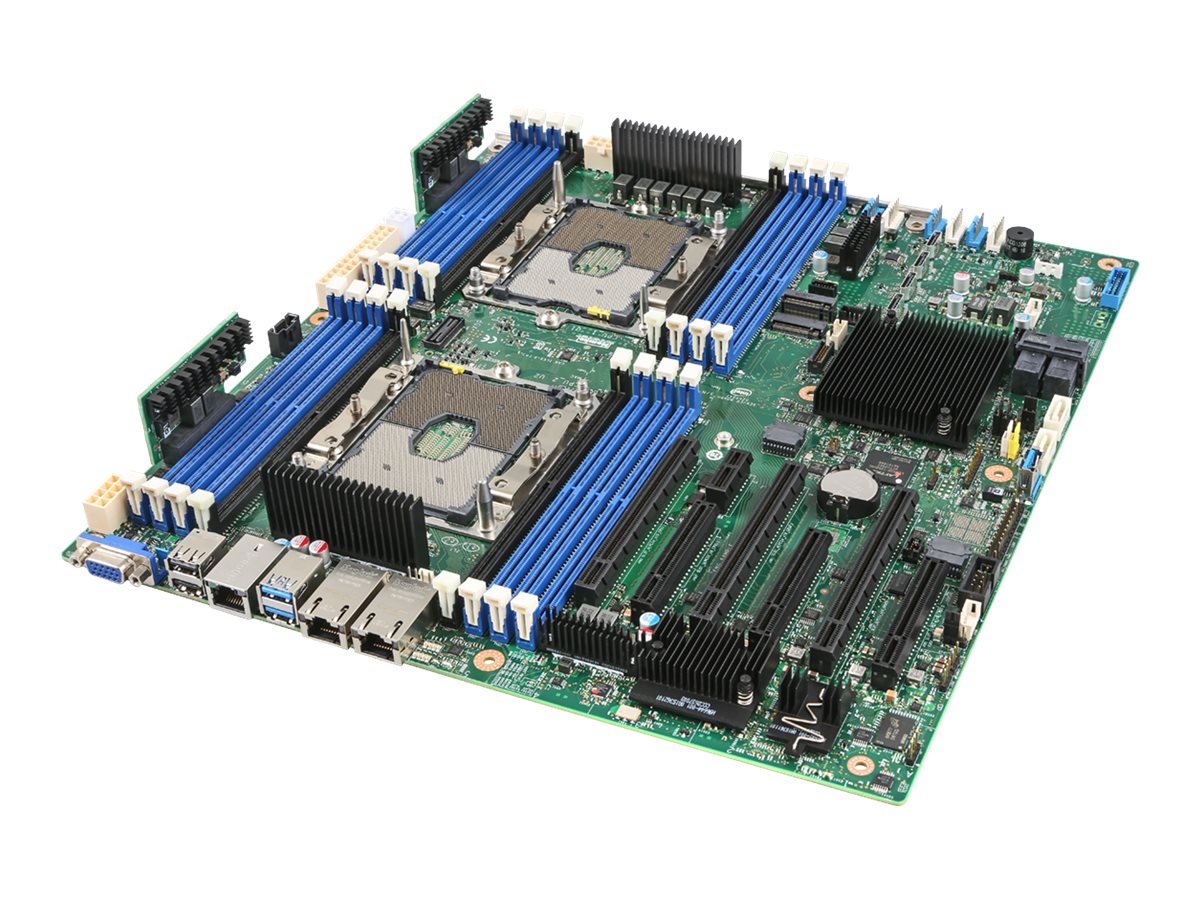

Intel Data Center Blocks (Intel DCB) are purpose built, fully validated server systems that can help partners accelerate time to market with innovative server solutions built with the latest technology. In addition to predefined configurations, Intel will also build servers to your specifications from a list of validated components optimizing the performance and costs when a more custom system is needed.



Egenskaper

● Support for two socket 2nd Generation Intel Xeon Scalable processors
● 16 DDR4 DIMM slots
● Six PCIe Gen 3.0 slots, providing maximum configuration flexibility
● Up to four on-board OCuLink connectors for direct attach NVMe 2.5" SSD support
● Operating system boot option via two 80 mm M.2 connectors (x2 and x4 PCIe & SATA)
● Networking flexibility with dual 10GBase-T and Dual 10G SFP+ modules
● Up to 150 Gbps high speed compression via three Intel QuickAssist Technology (Intel QAT) engines



Teknisk specifikation

Typ av produkt	Moderkort - SSI EEB
Processor	Intel
Kretstyp	Intel C628
Processor-socket	Socket P
Maximalt antal processorer	2
Kompatibla processorer	Xeon Gold, Xeon Bronze, Xeon Silver, Xeon Platinum (Max. TDP 205 watt)

Maximal storlek	2 TB
Teknik	DDR4
Bussklocka	2400 MHz, 2133 MHz, 2666 MHz, 2933 MHz
Stöder Ram Integrity Check	ECC
Registrerad eller buffrad	Registrerad, Load-Reduced

Dedicerat videominne	16 MB DDR4 SDRAM

Nätverksgränssnitt	2 x 10 Gigabit Ethernet

Expansionskortplatser	2 x CPU 16 x DIMM 288-stift (1.2 V) 3 x PCIe 3.0 x16 3 x PCIe 3.0 x8
Lagringsgränssnitt	Intel C628: PCIe 3.0 -kontakter: 2 x NVMe-portar Intel C628: SATA-600 -kontakter: 2 x 7 pin seriell ATA Intel C628: SATA-600 / PCIe -kontakter: 2 x M.2 Intel C628: SATA-600 -kontakter: 2 x mini-SAS HD
RAID-egenskaper	Software RAID 0/ 1 / 10
Gränssnitt	2 x LAN (10Gigabit Ethernet)
Interna gränssnitt	1 x USB 3.0 - Type A 1 x USB 3.0 - header 1 x seriell

BIOS-typ	Intel
BIOS-egenskaper	IPMI 2.0-support
Hårdvaruegenskaper	Trusted Platform Module (TPM) 2.0

Inkluderade tillbehör	IO-skydd, skyddande isolator, konfigurationsetikett
Medföljande kablar	2 x Seriell ATA-kabel
Bredd	30.5 cm
Djup	33 cm

Service och support	Begränsad garanti - 3 år
