Produktbeskrivning

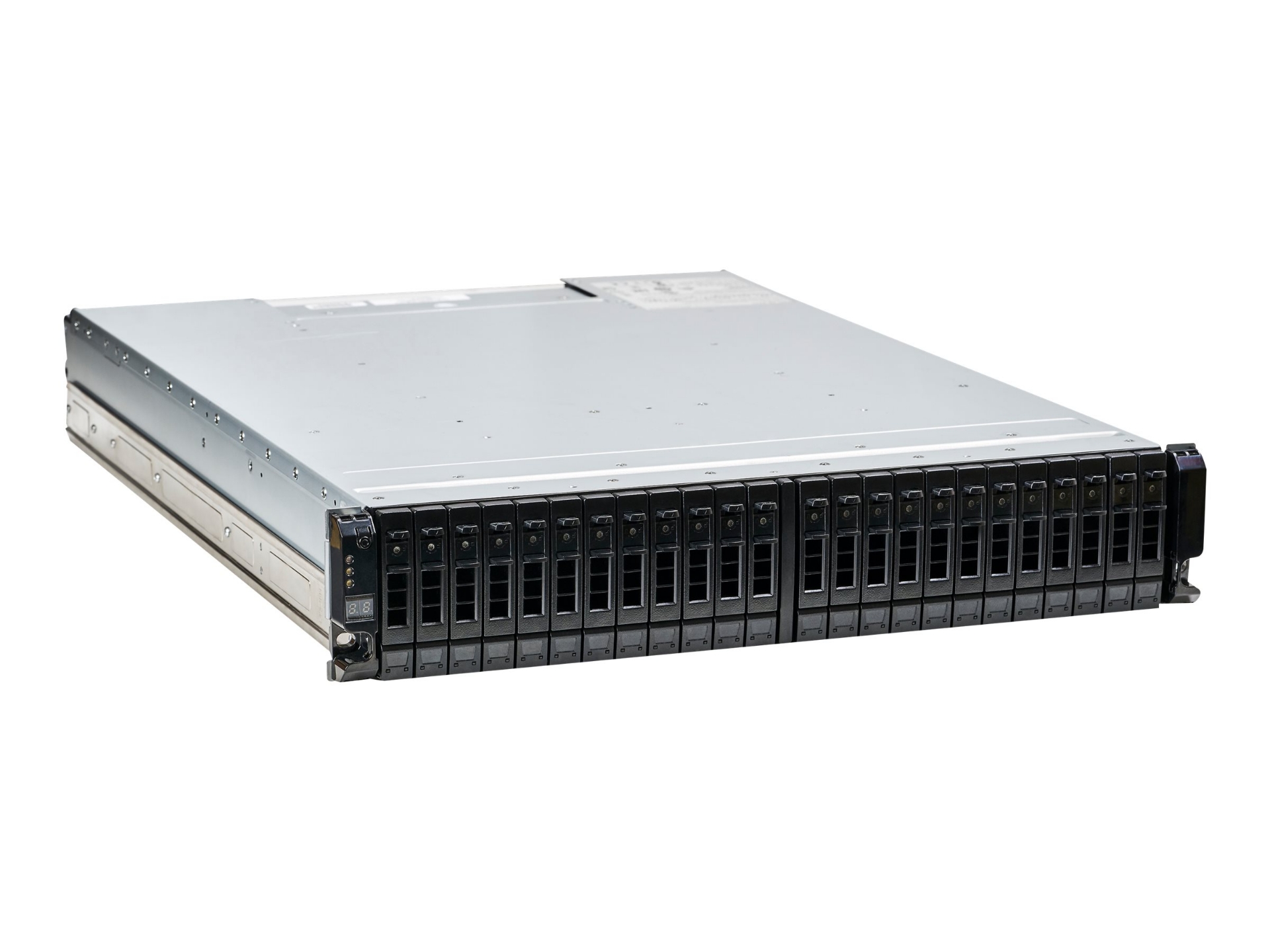

Seagate Exos X 2U24 is an entry-level solution for right-sized storage performance at an exceptional price point.



Egenskaper

Transfer data fast with a 12Gb/s SAS interface
Get data to applications when and where it's needed with up to 12Gb/s speed, right-sized capacity, and effective maximum throughput of 14.4GB/s in a single I/O module or 28.8GB/s in a dual controller configuration. Even with expansion capability of up to 144 hard drives or solid-state drives, there is no sacrifice of space for performance.

Deliver versatile architecture built to grow
This flexible enclosure includes support and capabilities to manage cables, universal ports, self-configuration controls, and standardized zoning. As a key building block of the modular systems - which make all critical components interchangeable regardless of size or budget - this enclosure's modularity makes it easy to set up, maintain, and expand via interchangeable FRUs and hot-swappable components.

Ensure applications have access to critical data
Safeguard your data with fault diagnosis, resolution capabilities, persistent error logging, and monitoring while ensuring maximum availability and harnessing high-availability features such as dual PCMs and I/O modules, as well as dual data paths to all drives.

Reduce cost and resources with energy-efficient features
This enclosure is suited for high-capacity, transaction-dependent environments that demand tighter Service Level Agreement (SLA) requirements and need faster response times for optimal data availability. It meets stringent worldwide requirements for recycling and environmental friendliness, can help you minimize environmental impact, and recognize cost savings through high performance and efficiency.



Teknisk specifikation

Typ av enhet	Kabinett för lagringsenheter
Modell	Kan monteras i rack - 2U

Inbyggda enheter	2 I/O-moduler
Antal enheter/moduler som stöds	24
Enheter som stöds	SAS-3

Typ	Ingen HDD

Expansionsfack	24 (totalt)/ 24 (ledig) x hot-swap - 2.5"
Gränssnitt	6 x SAS 12Gb/s - 36 pin 4x Mini SAS HD (SFF-8644) 1 x seriell RS-232 1 x hantering - RJ-45

Egenskaper	Hotswapp-bara fläktar, hotswap-bara kontroller
Standarder som följs	EN 61000-3-2, EN 61000-3-3, EN55024, CCC, FCC, UL 60950-1, IEC 60950-1, EN 60950-1, WEEE, KC, Directive 2009/125/EC, VCCI Class A, KN24, RCM, RoHS 2011/65/EU, BIS, FCC CFR47 Part 15 B Class A, CNS 13438 Class A, KN35, AS/NZS CISPR 32 Class A, EN 55032 Class A, ICES-3(A)/NMB-3(A), CAN/CSA-C22.2 No. 60950-1-07
Inkluderade tillbehör	Skensats

Nätdel	2 x intern strömförsörjning - hot-plug
Redundant ström	Ja
Schema för redundant ström	1+1
Nätspänning	AC 90-264 V 50/60 Hz
Effekt	580 Watt

Bredd	48.3 cm
Djup	63 cm
Höjd	8.89 cm

Min temperatur vid drift	5 °C
Max temperatur vid drift	40 °C
Luftfuktighet vid drift	10 - 80 % (icke-kondenserande)
