Produktbeskrivning

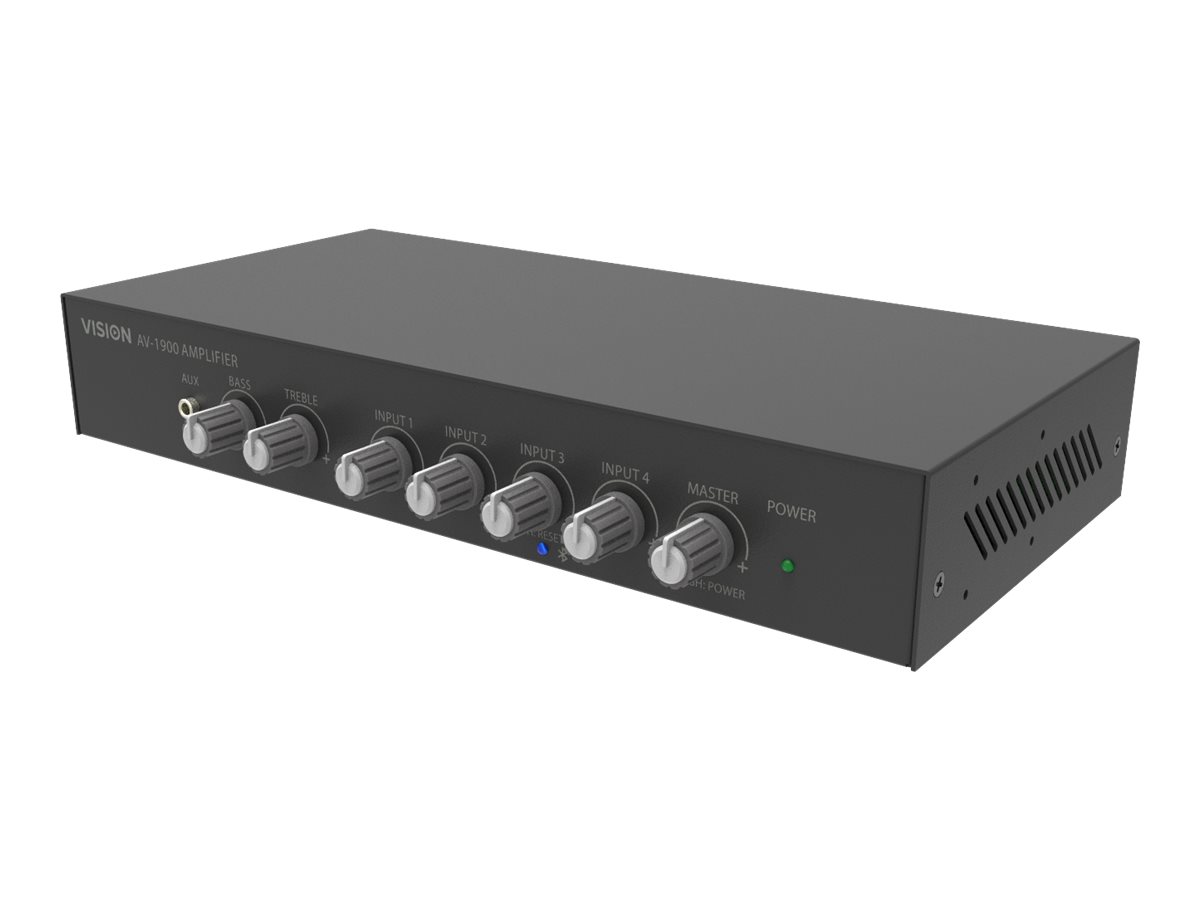

The AV-1900 is a highly capable mixer-amplifier packed with useful features to make it as easy as possible to operate. It is designed for use in demanding applications like meeting spaces, small auditoriums, lecture theaters, school halls, and small churches. It has professional audio features normally only found in much more expensive mixer amps.



Egenskaper

Bluetooth
For ease of connectivity it has a Bluetooth input. The device name and pin are preset and cannot be changed. A device can be manually unpaired by pressing the INPUT 3 dial. If you do not want Bluetooth active just set input 3 to mic input with the switch on the rear.

Mixer amp
This amp has four inputs, each of which can either be used for a microphone or a line-level input. It is a true mixer amp, so it can bring together multiple sources and play them at the same time.

Mic pre-amp trim
The input gain for each mic input can be "trimmed" - adjusted on the rear panel. This allows the installer to "turn up" less sensitive mics, and "turn down" hot inputs.

Four microphone inputs
All mic inputs are "balanced" to eliminate electro-magnetic noise induced on long cables. Input 1 uses a professional XLR connector - more convenient for rental and portable use, and the other inputs use phoenix connectors - more suited to permanent installations.

Switchable Phantom power
Each mic input has Phantom power which is a voltage required to make professional condenser mics work. Phantom can be turned off on each input discreetly.

RS-232
Designed for integration with a bigger system, it can be controlled by a control system such as Techconnect Control via RS-232.

D-class
An efficient Digital-class amplifier chip dramatically reduces power consumption especially at rest, and makes this amp super-small.

3 x stereo inputs
Three line-level stereo inputs accept input from a variety of sources such as computers (via the headphone jack), tablets or phones. Inputs 1 and 2 use 2-phono (RCA) connectors. Input 4 is via a Minijack connector, and is duplicated on the front panel for adhoc access.

Line output
A line-level pre-output on the rear bypasses the internal amplifier. It would connect to a larger amplifier or powered loudspeakers. It is post-mix; volume adjustments made on the front panel affects the output level.

Auto-standby
If the amplifier senses no input it will automatically go into standby mode. When it senses input it will reactivate. Auto-standby can be disabled via RS-232.

Mounting options
Rack ears are included so it can be integrated into an AV rack.



Teknisk specifikation

Typ	Mixerförstärkare

Rackmontering	Kan monteras i rack
Kanalantal (totalt)	4-kanals
Frekvensrespons	50 Hz - 18 kHz
Powered	Drivna
Phantom Power för mikrofon	48 V
Reglagetyper	Rattar
Egenskaper	Bluetooth 5.0-gränssnitt

Mikrofonkanaler	4 mono
Kontakt för mikrofonkanaler	XLR, terminalblock (klämma)
Linjekanaler	3 stereo
Kontakt för linjekanaler	RCA x 2, ministereotelefon 3,5 mm
Omkopplare för ingångsnivå	Mik/linje

Antal band	2

Uteffekt / total	100 Watt

Anslutningstyp	1 x linjeingång för ljud (minihörlurskontakt, stereo 3,5 mm) - fram 1 x mikrofon (XLR) - bak 2 x mikrofon (terminalblock) - bak 2 x linjeingång för ljud (RCA-telefon x 2) - bak 1 x linjeingång för ljud (minihörlurskontakt, stereo 3,5 mm) - bak 1 x linjeutgång för ljud (RCA-telefon x 2) - bak 1 x seriell (terminalblock) - bak 2 x utgång för högtalare (terminalblock) - bak

Nätspänning	AC 120/230 V
Strömförbrukning	100 Watt

Färg	Svart

Bredd	28.3 cm
Djup	13.5 cm
Höjd	4.5 cm
Vikt	1.2 kg

Emballagets bredd	33.3 cm
Emballagets djup	20 cm
Emballagets höjd	15.5 cm
Emballagets vikt	3 kg

Garanti	Livstidsgaranti
